What are the common xcmg crane spare parts?

As a supplier of XCMG crane spare parts, I've had the privilege of working closely with these powerful machines and understanding the critical role that spare parts play in their operation. In this blog, I'll share some of the common XCMG crane spare parts that are frequently in demand.

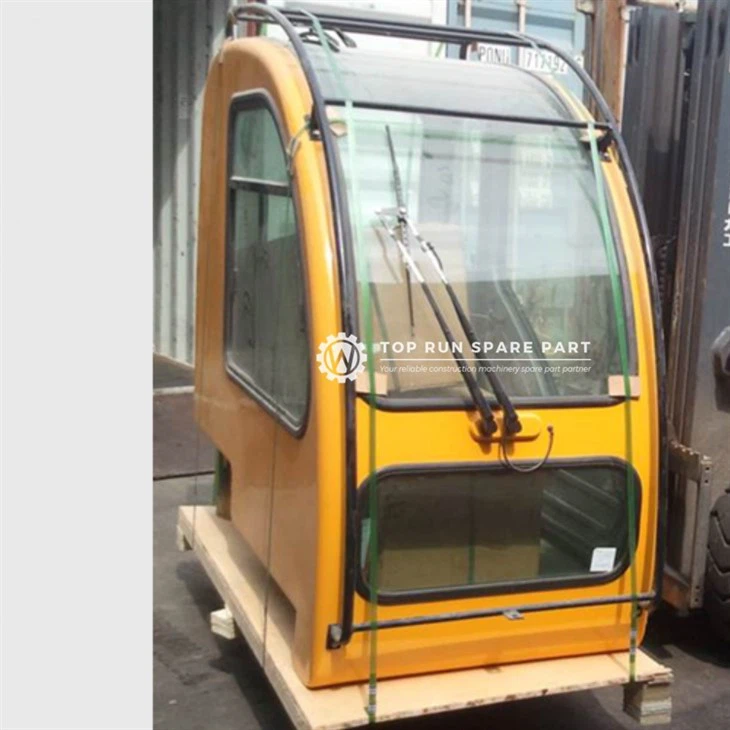

1. Crane Operator Cabin

The Crane Operator Cabin is the nerve - center of the crane. It provides a safe and comfortable working environment for the operator. Inside the cabin, there are various controls and monitoring systems that allow the operator to manage the crane's movements precisely.

The cabin needs to be well - maintained and equipped with high - quality components. For example, the seats should be ergonomic to reduce operator fatigue during long working hours. The windows need to be clear and strong, providing a good view of the working area. Also, the ventilation system in the cabin is crucial to ensure fresh air circulation. Over time, parts such as the seat cushions may wear out, the window glass could get scratched or cracked, and the ventilation fans might malfunction. When these issues occur, it's essential to replace the relevant parts promptly to maintain the safety and comfort of the operator.

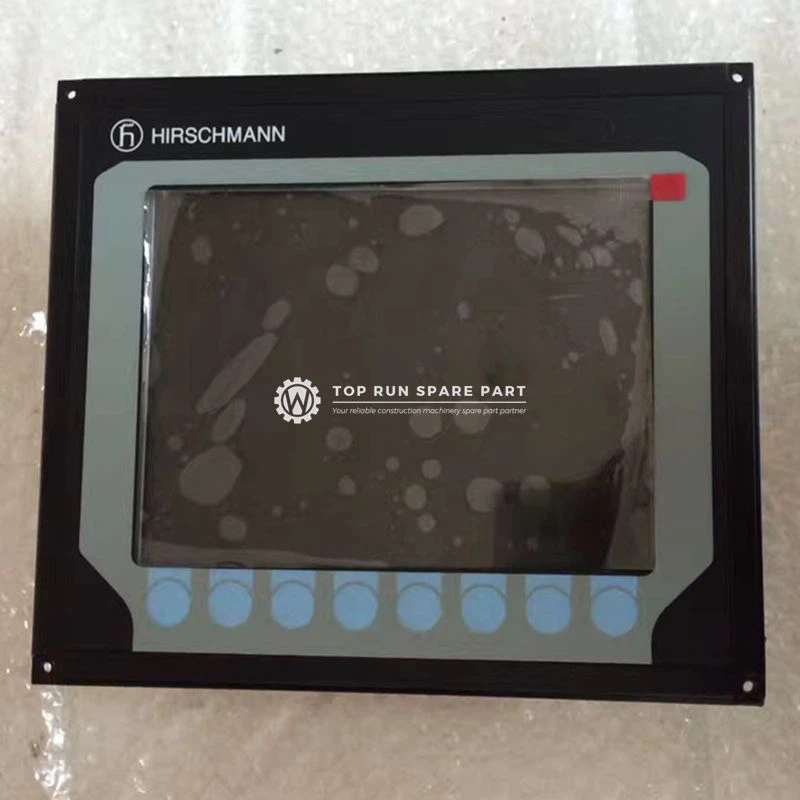

2. IC5600 Display

The IC5600 Display is an important component in XCMG cranes. It serves as an interface between the operator and the crane's control system. This display provides real - time information about the crane's operation, such as load capacity, boom angle, and lifting height.

Accurate information on the display is vital for the operator to make informed decisions during the lifting process. For instance, if the load capacity limit is approaching, the display will show a warning signal. However, due to continuous use, the display may experience problems like pixel damage, backlight failure, or software glitches. In such cases, replacing the IC5600 Display or its related components is necessary to ensure the reliable operation of the crane.

3. Rtd11509c Gearbox Assy/transmission

The Rtd11509c Gearbox Assy/transmission is responsible for transferring power from the engine to the crane's various moving parts, such as the hoist, trolley, and slewing mechanism. It plays a key role in determining the crane's speed, torque, and overall performance.

The gearbox operates under high - stress conditions, with gears meshing and rotating continuously. This can lead to wear and tear of the gears, bearings, and seals. If not addressed in time, a damaged gearbox can cause serious problems, including reduced lifting capacity, abnormal noise, and even complete breakdown of the crane. Regular inspection and timely replacement of worn - out parts in the Rtd11509c Gearbox Assy/transmission are essential to keep the crane running smoothly.

4. Wire Ropes

Wire ropes are fundamental for the lifting function of XCMG cranes. They are used to support and lift heavy loads. During the lifting process, the wire ropes are subject to significant tension and friction.

Over time, the outer wires of the rope may start to fray, and the inner strands may also experience damage. A worn - out wire rope can pose a serious safety risk as it may break under heavy loads. Therefore, regular inspection of the wire ropes is crucial. When signs of wear are detected, such as a certain number of broken wires within a specific length, the wire rope should be replaced immediately.

5. Hydraulic Cylinders

Hydraulic cylinders are used in XCMG cranes to control the movement of the boom, jib, and other components. They work by converting hydraulic pressure into linear motion.

The seals in the hydraulic cylinders are prone to wear and tear. A damaged seal can cause hydraulic fluid leakage, which not only reduces the efficiency of the cylinder but also poses an environmental hazard. Additionally, the piston rods may get scratched or corroded, affecting the smooth operation of the cylinder. Replacing the seals and damaged piston rods in a timely manner is necessary to maintain the proper functioning of the hydraulic system.

6. Brakes

Brakes are critical safety components in XCMG cranes. They are used to stop the movement of the hoist, trolley, and slewing mechanism, ensuring the stability of the crane during operation and when the load is stationary.

The brake pads are the main friction components in the braking system. With repeated use, the brake pads will wear down. If the brake pads are too thin, the braking performance will be significantly reduced, increasing the risk of accidents. Regular inspection of the brake pads and replacement when they reach the wear limit is essential for the safety of the crane operation.

7. Electrical Components

XCMG cranes are equipped with a complex electrical system that includes various sensors, relays, switches, and cables. These electrical components are responsible for controlling different functions of the crane, such as lighting, control signals, and communication between different parts of the crane.

Electrical components can be affected by factors such as moisture, vibration, and electrical surges. For example, a faulty sensor may provide inaccurate information to the control system, leading to incorrect operation of the crane. Damaged cables can cause power outages or short - circuits. Regular inspection and replacement of damaged electrical components are necessary to maintain the proper functioning of the crane's electrical system.

8. Bearings

Bearings are used in many rotating parts of XCMG cranes, such as the slewing ring, hoist drum, and pulley. They reduce friction and allow smooth rotation of these parts.

The bearings are subject to high loads and continuous rotation, which can cause wear and fatigue. A damaged bearing can cause abnormal noise, increased vibration, and even seizure of the rotating part. Regular lubrication and inspection of the bearings are important. When signs of damage are detected, such as excessive play or abnormal noise, the bearings should be replaced promptly.

Why Choose Us as Your XCMG Crane Spare Parts Supplier?

As a professional XCMG crane spare parts supplier, we have several advantages. Firstly, we have a wide range of spare parts in stock, ensuring that we can meet your various needs in a timely manner. Whether you need a small electrical component or a large gearbox, we can provide it.

Secondly, we source our spare parts from reliable manufacturers. All our products undergo strict quality control to ensure that they meet the high - quality standards required by XCMG cranes. This means that when you purchase spare parts from us, you can be confident in their performance and durability.

Finally, our team of experts has in - depth knowledge of XCMG cranes and their spare parts. We can provide you with professional advice on part selection, installation, and maintenance. If you encounter any problems during the use of our spare parts, we are always ready to offer technical support.

If you are in need of XCMG crane spare parts, don't hesitate to contact us for procurement and negotiation. We are committed to providing you with high - quality products and excellent service.
